Mastering the AR-15 Upper Assembly: A DIY Guide

AR-15 upper assembly is the process of putting together the top half of an AR-15 rifle, which houses the barrel, bolt carrier group, and other critical components. For those looking to build their own AR-15, here’s a quick overview of the assembly process:

1. Install forward assist and dust cover on the stripped upper receiver
2. Mount the barrel and torque the barrel nut (30-80 ft-lbs)
3. Install gas block and gas tube with proper alignment
4. Attach the handguard following manufacturer specifications
5. Install muzzle device using crush washer or shims
6. Insert charging handle and bolt carrier group to complete the assembly

Building an AR-15 upper receiver from scratch is one of the most rewarding experiences in gun ownership. Not only does it give you complete control over your firearm’s performance characteristics, but it also provides valuable insight into how your weapon functions.

While the process might seem intimidating at first, with the right tools and guidance, anyone with basic mechanical skills can successfully assemble an AR-15 upper. The beauty of this modular platform is that you can customize every component to match your specific needs, whether for home defense, competition shooting, or recreational target practice.

Unlike the lower receiver, the AR-15 upper is not considered a firearm by the ATF, meaning it can be shipped directly to your door without special paperwork or transfers. This accessibility makes the upper assembly an excellent entry point for those looking to build their first AR-15.

Throughout this guide, we’ll break down each step of the assembly process, highlight the tools you’ll need, and share expert tips to ensure your build goes smoothly. Patience is key—take your time with each component, follow proper torque specifications, and don’t hesitate to double-check your work.

Easy AR-15 upper assembly glossary:
– AR-15 buffer kits
– AR-15 trigger assembly
– AR-15 lower parts

Understanding the AR-15 Upper Receiver

The AR-15 upper receiver is the heart of your rifle’s operating system. Unlike the lower receiver, which houses the trigger group and buffer assembly, the upper contains all the components that actually chamber, fire, and eject rounds. Let’s break down the key components:

1. Upper Receiver – The aluminum housing that serves as the foundation for all other components
2. Barrel – Determines caliber, accuracy, and effective range
3. Gas System – Redirects gas from fired rounds to cycle the action
4. Handguard – Protects hands from barrel heat and provides mounting points for accessories
5. Bolt Carrier Group (BCG) – Contains the bolt that locks into the barrel extension
6. Charging Handle – Used to manually cycle the action
7. Dust Cover – Protects internal components from debris
8. Forward Assist – Helps push the bolt carrier forward if it doesn’t fully seat
9. Shell Deflector – Directs ejected casings away from the shooter

One of the most important decisions when selecting an upper receiver is the material. Most quality uppers are made from either 7075-T6 or 6061-T6 aluminum. The 7075-T6 is the military specification (mil-spec) and offers superior strength, while 6061-T6 is slightly lighter but less durable.

Feature	Mil-Spec Upper	Proprietary Upper (e.g., Aero Improved)
Material	7075-T6 Aluminum	7075-T6 Aluminum
Weight	Standard	May be heavier (+0.33 oz)
Barrel Mounting	Standard Barrel Nut	Proprietary Barrel Nut System
Handguard Compatibility	Universal	Often Limited to Brand-Specific
Rigidity	Standard	Up to 30% More Rigid
Price	$70-130 (Stripped)	$100-200+ (Stripped)
Gas Tube Alignment	Standard	May Have Improved Features

The manufacturing method also matters. Forged receivers offer the best strength-to-weight ratio due to continuous grain flow during the forging process. Billet receivers are machined from a solid block of aluminum and often feature unique aesthetics and design elements but may not be quite as strong. Cast receivers are generally considered inferior for serious use.

What Makes It Tick

The AR-15 operates on a direct impingement system (though some variants use a piston system). Here’s how it works:

1. When you fire, propellant gases push the bullet down the barrel
2. Some gas is redirected through a small port in the barrel into the gas block
3. The gas travels back through the gas tube into the bolt carrier key
4. This pressure pushes the bolt carrier group backward, extracting and ejecting the spent casing
5. The buffer spring then pushes the BCG forward, stripping a new round from the magazine
6. The bolt locks into the barrel extension, ready to fire again

This cycle happens in a fraction of a second. The “dwell time” (how long the bullet remains in the barrel after passing the gas port) is critical for reliable operation. This is why proper gas system length selection is vital based on your barrel length.

Materials & Manufacturing

Most quality AR-15 upper receivers are made from 7075-T6 aluminum, which offers an excellent balance of strength, weight, and machinability. This aircraft-grade aluminum is about 50% stronger than the 6061-T6 alternative, making it ideal for a component that must withstand significant pressure and stress.

The manufacturing process typically follows one of three methods:

1. Forged – Material is heated and shaped under extreme pressure, creating a grain structure that follows the contours of the part. This results in the strongest receivers and is the mil-spec standard.

2. Billet – CNC-machined from a solid block of aluminum. These tend to be more expensive but allow for unique designs and aesthetics.

3. Cast – Molten aluminum poured into a mold. Generally considered the weakest option and not recommended for serious use.

After manufacturing, upper receivers receive a protective finish. Hard-coat anodizing (Type III) is the mil-spec standard, providing excellent corrosion and wear resistance. Many manufacturers also offer Cerakote finishes in various colors for additional protection and customization.

Choosing Your Upper: Stripped, Assembled, Barreled, or Complete

Shopping for an AR-15 upper assembly can feel a bit like ordering coffee at a fancy café – so many options! Let’s break down the four main types you’ll encounter in your building journey:

Think of the stripped upper as the blank canvas of the AR world. It’s just the bare receiver with nothing installed – no forward assist, no dust cover, nada. This is perfect if you’re the type who wants to handpick every single component that goes into your build. They’re typically the most affordable option, ranging from $70-200, making them great for budget-conscious builders.

The assembled upper saves you from some of the fiddlier work by already having the forward assist and dust cover installed. Those tiny roll pins can be surprisingly tricky for first-timers! These typically run $100-250 and give you a nice head start while still letting you choose the important performance parts.

Moving up the convenience ladder, a barreled upper comes with the barrel, gas system, and usually a handguard already professionally installed. This is my personal recommendation for first-time builders – you avoid the most technical aspects of the build (proper barrel installation and gas system alignment) while still getting to select your bolt carrier group and charging handle. Expect to pay between $250-800 depending on component quality.

For those who want the simplest path to getting shooting, the complete upper arrives ready to snap onto your lower receiver. Everything’s installed – bolt carrier group, charging handle, the works. Just attach it to your lower, and you’re range-ready! These typically cost $300-1,000+ depending on the components used.

Your choice really boils down to three factors: your budget, how much customization you want, and how comfortable you are turning wrenches. We offer compatible AR-15 uppers in all these configurations to match your specific needs.

One of the coolest things about AR-15s is their modularity. Many enthusiasts keep multiple uppers in different configurations that can all attach to the same lower receiver. Imagine swapping from a precision 20″ upper for long-range shooting to a compact 11.5″ upper for home defense in less than 30 seconds – that’s the beauty of the platform!

Mil-Spec vs Proprietary Designs

The AR-15 world is divided between traditional mil-spec designs and modern proprietary innovations. Mil-spec uppers follow military specifications with standard barrel nut threading that works with virtually any handguard on the market. They’re the safe choice for maximum compatibility.

Proprietary designs like the Aero Precision Improved upper offer some impressive advantages – integrated barrel nut systems that provide up to 30% more rigidity, improved rail lock-up, and often better heat dissipation. The trade-off? You’re typically limited to brand-specific handguards and components, which might cost more or be harder to find if discontinued.

Think of it as choosing between a universal remote control that works with everything but has basic features, versus a specialized remote that offers amazing functionality but only works with certain devices.

Barrel Length & Gas System Impact

Barrel length isn’t just about how your rifle looks – it fundamentally changes how it performs.

10-12″ barrels shine in tight spaces like hallways and vehicles. They’re lightweight, maneuverable, and perfect for home defense scenarios. Just remember that barrels under 16″ require either registration as a Short-Barreled Rifle (SBR) or use on a pistol lower with a brace. They’re also louder with more muzzle flash.

16″ barrels are the Goldilocks option – not too long, not too short, and no special paperwork required. This length offers good velocity and accuracy out to about 500 yards, making it ideal for general-purpose rifles. No wonder it’s the most common length you’ll see!

18-20″ barrels are precision-focused. The extra length increases bullet velocity and potentially improves accuracy for those long-range shots. Hunters and precision shooters gravitate toward these longer barrels for their ballistic advantages.

Matching your gas system length to your barrel is crucial for reliable function. Like dance partners, they need to complement each other:

Pistol-length gas systems work with barrels under 10″ and some 300 Blackout builds. Carbine-length systems are common on 10-16″ barrels. Mid-length systems provide smoother recoil on 14-18″ barrels (and are often preferred for 16″ barrels). Rifle-length systems pair beautifully with 18″+ barrels for the softest shooting experience.

The right pairing ensures your rifle cycles reliably without excessive recoil or premature wear. It’s a balancing act – too much gas (over-gassed) creates unnecessary recoil and wear, while too little gas (under-gassed) means your rifle might not cycle completely.

For more details about finding the perfect upper for your specific needs, check out our comprehensive Upper Receiver 101 guide.

Tools & Parts Checklist for a Successful Build

Building your own AR-15 upper assembly is a bit like cooking a great meal—you need the right ingredients and the proper tools to make magic happen. Let’s walk through everything you’ll need to get started.

First, let’s talk tools. You don’t need a professional gunsmith’s workshop, but a few specialized items are absolutely essential. An armorer’s wrench is your best friend here—this multi-purpose tool handles both barrel nuts and muzzle devices. Pair it with a good torque wrench (one that can measure 30-80 ft-lbs) to ensure everything is properly tightened.

You’ll also need something to secure your upper while you work. A quality upper receiver vise block or reaction rod prevents damage to your receiver during assembly. Trust me, trying to torque a barrel nut without proper support is a recipe for disaster!

For the smaller parts, grab a set of roll pin punches and a soft hammer. These help install tiny pins without marring your new components. Keep some anti-seize grease handy too—it’s crucial for barrel nuts and prevents galling between aluminum and steel parts.

Rounding out your toolkit should be feeler gauges for proper gas block alignment, some medium-strength (blue) Loctite for fasteners, a sturdy bench vise, and a quality set of Allen wrenches. If you’re serious about your build, consider investing in headspace gauges to verify safe operation before firing.

Now for the fun part—the components themselves! At minimum, you’ll need:

Core Components:
– Upper receiver (stripped, assembled, or complete)
– Barrel with properly installed extension
– Barrel nut (often included with your handguard)
– Gas block and matching gas tube
– Handguard or rail system
– Muzzle device with crush washer or shims
– Bolt carrier group
– Charging handle
– Forward assist assembly (if using a stripped upper)
– Ejection port cover with spring and C-clip (if using a stripped upper)

Want to learn more about upper receivers before diving in? Check out our comprehensive Upper Receiver 101 guide.

Sourcing Quality Components

Not all parts are created equal, and the quality of your components directly impacts how your rifle performs. When it comes to the bolt carrier group—the heart of your rifle’s operation—look for quality indicators like Carpenter 158 steel bolts (the military specification) or 9310 steel alternatives.

A properly tested BCG will have undergone both MPI (Magnetic Particle Inspection) and HPT (High Pressure Test). These testing methods ensure your bolt won’t fail when you need it most. Consider the coating too—phosphate is the mil-spec standard, but modern options like nitride, nickel boron, or DLC (Diamond-Like Carbon) offer improved lubricity and corrosion resistance.

When selecting a handguard, the mounting interface matters. M-LOK has become the dominant standard, offering a lightweight system with plenty of accessory options. Traditional Picatinny rails provide universal compatibility but add weight, while KeyMod, though less popular now, remains a functional alternative.

Barrel quality makes or breaks accuracy. Look for 4150 CMV (Chrome Moly Vanadium) for durability or 416R stainless steel for precision work. Chrome-lined barrels resist wear and corrosion, while nitrided barrels offer improved accuracy with good corrosion resistance. The manufacturing method—whether button-rifled, cold hammer-forged, or cut-rifled—also impacts performance and longevity.

At Daytona Tactical, we understand the importance of quality components. That’s why we carefully source our parts from reputable manufacturers, ensuring you get reliable performance from your custom build. After all, your safety and satisfaction are our top priorities!

Step-by-Step AR-15 Upper Assembly

Ready to dive into your AR-15 upper assembly project? Let’s roll up our sleeves and get started! Before you touch a single part, take a moment to set up a clean, well-lit workspace. I like to lay out all my components and tools in a logical order—think of it as setting the stage for success. A parts tray or magnetic mat can be a lifesaver for keeping those tiny springs and detents from disappearing into the workshop abyss.

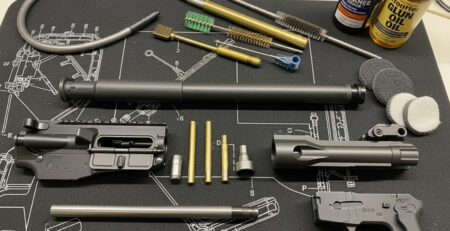

First things first—give all your parts a thorough cleaning. Even new components often come coated with preservative oils or might have machining residue. A good degreaser like Simple Green works wonders here. Just make sure everything is completely dry before assembly begins.

If you’re working with a new barrel and bolt, I strongly recommend checking headspace with proper gauges. While most modern manufacturers maintain tight tolerances, this extra step provides peace of mind that your firearm will operate safely and reliably.

Installing the Barrel & Barrel Nut

Securing the barrel properly is perhaps the most critical step in your AR-15 upper assembly. Start by clamping your upper receiver in a vise using a proper receiver block or reaction rod—snug but not overly tight.

Take a moment to inspect both the barrel extension and upper receiver for any burrs or debris. The fit between these two parts should feel snug but shouldn’t require you to channel your inner Hercules.

Now, apply a thin layer of anti-seize grease to the barrel nut threads on the upper receiver. This prevents galling and makes future disassembly much easier. Important note: keep this grease OFF the interface between the barrel extension and receiver—that connection needs to be clean and dry.

When you slide the barrel into the receiver, make sure the indexing pin aligns perfectly with its corresponding notch. Then thread on your barrel nut by hand until it’s finger-tight.

Time to break out the torque wrench! Tighten the barrel nut to manufacturer specs, typically between 30-80 ft-lbs. If you’re not sure, 40 ft-lbs is generally a safe bet. Here’s a pro tip I’ve learned from experience: torque the barrel nut three times (tighten, loosen, repeat) before your final torque. This helps seat everything properly and reduces the chance of it working loose over time.

For proper “timing,” you’ll need to align the barrel nut so the gas tube can pass through. Start at minimum torque and increase gradually until alignment is achieved. If you reach maximum torque without proper alignment, back off and use shims to make it work.

Gas Block & Tube Alignment

Getting your gas system right is crucial for reliable cycling. Begin by installing the gas tube into your gas block—align the holes and gently tap in the roll pin using a proper punch. A bench block underneath prevents damage and makes this job much easier.

Double-check that the gas tube’s hole faces downward when installed. Then slide the gas block onto the barrel from the muzzle end. Most barrels have a shoulder that the gas block should nestle against.

Proper alignment between the gas block and the gas port in your barrel is absolutely critical. You can verify this by looking through the gas tube from the receiver end with a light positioned behind the gas port, or by carefully using a thin probe through the gas block to feel for the port. Some builders draw alignment marks on both barrel and gas block for extra precision.

Remember to leave a small gap—typically 0.025″ between the gas block and barrel shoulder. A feeler gauge or even a credit card makes a handy spacer. When securing the gas block, the method depends on its design:
– Set screw type: Apply blue Loctite and torque to about 30 in-lbs
– Clamp-on type: Tighten screws evenly on both sides
– Pin-on type: Carefully drive pins through without damaging the barrel

If you’ve opted for an adjustable gas block, start with it fully open and fine-tune after your first range session.

Handguard Attachment

Free-float handguards have become the gold standard for modern AR-15 upper assembly builds, offering improved accuracy (since they don’t touch the barrel), better heat dissipation, more mounting options, and sleek aesthetics.

Installation varies by manufacturer, but the general process is straightforward. Slide the handguard over your barrel and align it with the barrel nut. Depending on your specific model, you might be screwing the handguard directly to a proprietary barrel nut, using a compression ring system, or clamping it to a standard barrel nut.

Make sure there’s even spacing around the barrel, and that the top rail aligns perfectly with your receiver rail—you want one continuous, seamless rail from back to front. Tighten all screws to specification, typically around 30-40 in-lbs. When in doubt, 40 in-lbs is usually safe.

The final check is simple but important: verify that no part of the handguard touches the barrel. That’s the “free” in free-float!

Muzzle Device Indexing

Your choice of muzzle device affects recoil management, flash signature, and potentially accuracy. Start by thoroughly cleaning the barrel threads and applying a tiny amount of anti-seize (just a dab will do).

You have three main options for indexing your muzzle device:
– Crush washers: Simple but less precise
– Shims: More precise timing but more complex to work with
– Peel washers: Adjustable thickness for precise timing

When using a crush washer, install it with the concave side facing the muzzle device. Thread on the device hand-tight, then use a wrench to continue tightening until proper orientation is achieved—typically ½ to ¾ turn past hand-tight.

For shims, select the appropriate combination to achieve correct timing. Stack them between the barrel shoulder and muzzle device, then torque to the specified value (typically 15-20 ft-lbs).

The proper orientation depends on your device type:
– Flash hiders: Position ports away from 12 o’clock to prevent dust signature when shooting prone
– Muzzle brakes: Align ports at 3 and 9 o’clock for lateral compensation
– Compensators: Typically timed with ports upward to fight muzzle rise

Getting this timing right is especially important for devices designed to reduce muzzle rise or for suppressor mounts. Take your time here—a properly indexed muzzle device makes a noticeable difference in shooting performance.

Want to learn more about putting together your dream rifle? Check out our AR-15 upper assembly kit page for everything you need to get started!

Finishing Touches on Your AR-15 Upper Assembly

Now that you’ve tackled the major components, it’s time to put the finishing touches on your AR-15 upper assembly. These final steps might seem small, but they’re crucial for a fully functioning upper.

Installing the Dust Cover (if not pre-installed)

The dust cover is that little flap that keeps dirt and debris out of your action when you’re not firing. If yours didn’t come pre-installed, don’t worry—it’s a bit fiddly but totally doable.

Position the dust cover against your upper receiver and partially insert the hinge pin through one side. Now comes the tricky part: place the spring on the pin with one leg against the receiver and the other pointing outward. As you push the pin through, rotate that spring leg clockwise (it’ll want to fight you a bit). Finally, snap the spring leg into the notch on the dust cover. Give it a few test flips to make sure it opens smoothly and snaps closed with authority.

Installing the Forward Assist (if not pre-installed)

The forward assist is your friend when a round doesn’t fully chamber. Start by inserting the spring and plunger into the forward assist assembly. Slide this assembly into your upper receiver from the rear, then compress it against its spring while lining up the pin holes. Carefully tap in the roll pin using a punch and hammer—go slowly here to avoid marring your new upper. Once installed, press and release the forward assist a few times to ensure smooth operation.

Installing the Charging Handle and BCG

This is where your upper really comes to life! First, give your charging handle rails and the exterior of your bolt carrier group a good coat of quality lubricant. Insert the charging handle at a slight angle, then level it out in its track. Pull it back about halfway to create space for the BCG.

With your bolt in the forward position, slide the bolt carrier group into the upper receiver. Then push both components forward until they lock in place. The marriage of these parts is what makes your upper function, so take your time and ensure everything moves smoothly.

Don’t skimp on lubrication—it’s the lifeblood of your AR-15 upper assembly. Apply a light coat to the bolt carrier body, a more generous amount to the bolt lugs, moderate lube on the cam pin, a light coat on charging handle rails, and just a whisper of oil inside the gas key.

Take a moment to check your bolt carrier group’s gas key. It should be properly staked, meaning there’s visible material displaced against the screws to prevent them from backing out during firing. This small detail can make a big difference in reliability.

Function Check & Safety Verification

Before you marry your new upper to a lower receiver, run through this quick safety checklist:

Give everything a thorough visual inspection, especially checking that your gas tube aligns properly with the gas key on the bolt carrier. Make sure your bolt moves freely in the carrier, the extractor has good spring tension, and the ejector pops out with authority. Your charging handle should glide back and forth without catching.

Once you’ve attached your upper to a lower receiver (without ammunition, of course), perform a basic function check: Pull the charging handle all the way back and release it, making sure the bolt locks back when you hold the bolt catch. Press the bolt release and watch for smooth forward movement.

Only after passing all these checks should you head to the range. When you do, start conservatively—fire single shots first to verify proper cycling before attempting rapid fire. This methodical approach will help identify any issues before they become problems.

Your home-built upper isn’t just a collection of parts—it’s a precision machine you’ve crafted with your own hands. Take pride in that accomplishment, and enjoy the unique satisfaction that comes from shooting a firearm you assembled yourself.

Performance Tuning & Troubleshooting

Even the most carefully assembled AR-15 upper might need some fine-tuning to reach its full potential. Think of it like adjusting a musical instrument—sometimes a few small tweaks make all the difference between mediocre and magnificent performance.

Over-Gassing

If your rifle feels like it’s kicking harder than it should, you might be dealing with an over-gassed system. You’ll notice excessive recoil that feels more like a punch than a push, and your spent casings might be flying far to the right (3 o’clock position or further). This isn’t just uncomfortable—it’s actually causing premature wear on your bolt, buffer, and receiver extension.

The good news? Several solutions exist to tame that excess gas. An adjustable gas block gives you precise control over how much gas enters your system—think of it as a dimmer switch for your rifle’s power. A heavier buffer can also help by slowing down the bolt carrier group’s rearward movement. Some shooters find success with a stronger buffer spring or even specialized delayed carrier systems that change how the rifle cycles.

Under-Gassing

The opposite problem can be just as frustrating. When your rifle fails to cycle completely or doesn’t lock back on an empty magazine, you’re likely dealing with insufficient gas. You might notice short ejection patterns or the dreaded “stovepipe” jams where spent casings get caught in the ejection port.

First, check the fundamentals: Is your gas block properly aligned with the port in your barrel? Even a slight misalignment can starve your system of the pressure it needs. Verify that your gas tube is correctly installed and not binding anywhere. Sometimes the fix is as simple as switching to a lighter buffer or ensuring your rifle is properly lubricated. Don’t overlook your ammunition either—some loads produce less pressure than others, which can affect cycling in a finely-tuned system.

Accuracy Issues

When your groups aren’t as tight as you’d like, start with the mechanical connections. A loose barrel nut can cause inconsistent harmonics that wreak havoc on accuracy. Make sure your handguard isn’t making contact with your barrel—that’s a free-float handguard’s whole purpose, after all. Check that your muzzle device is correctly installed and timed.

Don’t forget to try different ammunition brands and weights. Barrels often show preferences for specific loads, and finding that perfect match can shrink your groups dramatically. Finally, inspect your barrel for fouling or damage, as even minor issues can affect bullet stability.

An adjustable gas block remains one of the best all-around upgrades for performance tuning. Beyond just fixing over-gassing, it lets you dial in your rifle’s sweet spot, reducing felt recoil, decreasing component wear, improving reliability with suppressors, and optimizing for your preferred ammunition.

Common Mistakes to Avoid

We’ve seen plenty of builds come through Daytona Tactical with the same preventable issues. Cross-threading the barrel nut tops the list—always start threads by hand and feel for that smooth engagement before using tools. Improper torque is another culprit; invest in a good torque wrench and use it on critical components.

Missing or improperly seated gas tube roll pins can work themselves loose over time, causing mysterious malfunctions. When installing handguards, tighten screws in an alternating pattern (like you would with car wheels) to ensure even pressure. Overtightening set screws might seem like good insurance, but it can actually damage your barrel or strip threads.

Don’t forget the anti-seize on barrel threads—your future self will thank you when disassembly time comes. Pay attention to crush washer orientation, as the concave side should face the muzzle device for proper timing. Above all, take your time with gas block alignment—it’s the number one cause of cycling issues we see in customer builds.

Patience is your best tool. Rushing through adjustments often leads to chasing problems in circles. Make one change at a time, test thoroughly, and you’ll develop a rifle that performs exactly the way you want it to.

For the latest research on gas system lengths and how they affect performance, check out this comprehensive guide.

Legal & Safety Considerations

Building your own AR-15 upper assembly is rewarding, but it comes with important legal responsibilities. Before you start ordering parts, take a moment to understand the rules of the road—they’ll keep you on the right side of the law and ensure your build is both safe and legal.

The good news is that the upper receiver itself isn’t considered a firearm by federal law. This means you can have it shipped directly to your door without the paperwork and FFL transfers required for lower receivers. It’s one of the reasons why building your own upper is such an accessible entry point to AR customization.

However, barrel length creates important legal distinctions. If you’re installing a barrel shorter than 16 inches on a receiver that was originally configured as a rifle, you’ll be creating a Short-Barreled Rifle (SBR). These are regulated under the National Firearms Act and require registration with the ATF, approval, and a $200 tax stamp before assembly.

The same short barrel on a pistol lower (one that was never configured as a rifle) remains legal in most states without NFA paperwork. It’s a subtle but crucial difference that can have serious legal consequences if overlooked.

Overall length matters too. A complete firearm must measure over 26 inches in total length to avoid classification as an “Any Other Weapon” under the NFA—another category requiring registration and tax stamps.

State laws add another layer of complexity. While your upper build might be perfectly legal under federal law, some states have additional restrictions on specific features:

State-specific restrictions might include:
– Flash hiders (prohibited in some states)
– Muzzle brakes or compensators
– Threaded barrels
– Overall firearm configurations

Always research your specific state and local regulations before ordering parts or beginning your build. What’s perfectly legal in Texas might be prohibited in California or New York.

When it comes to safety, building your own upper comes with responsibilities. Always verify headspace with proper gauges before firing a newly assembled upper. This simple check can prevent catastrophic failures that could result in serious injury. Make sure all components are properly torqued to specification—this isn’t the place to guess or “feel” when something is tight enough.

I recommend keeping detailed records of your build components and specifications. This documentation not only helps with troubleshooting but could prove valuable if questions ever arise about your firearm’s configuration.

At Daytona Tactical, we’re committed to helping you build safely and legally. While we provide quality components for your AR-15 upper assembly, the responsibility for understanding and following applicable laws rests with you, the builder. If you’re ever unsure about a particular configuration or component, consult with a qualified attorney familiar with firearms law in your jurisdiction.

Responsible gun ownership extends beyond building—always store your firearms securely when not in use, following all safety rules when handling them. Your custom-built AR-15 should be a source of pride and enjoyment, not legal complications.

Frequently Asked Questions about AR-15 Upper Assembly

Do I need special tools to build an upper?

Building your first AR-15 upper assembly might seem intimidating, especially when you see the list of recommended tools. While you technically could attempt assembly with basic tools from your garage, I wouldn’t recommend it.

Think of specialized tools as an investment in both your rifle’s performance and your sanity during the build process. At minimum, you’ll want a quality armorer’s wrench, torque wrench, upper receiver vise block (or reaction rod), and a set of roll pin punches.

These tools might seem expensive at first glance, but they’re far cheaper than replacing damaged components or paying a gunsmith to fix mistakes. If you’re only building one upper, consider borrowing tools from a friend or joining a local gun club where members often share resources. Some local gun shops even offer tool rentals for builders.

Proper torque on your barrel nut isn’t just about function—it’s about safety. That’s not something you want to guess at with a regular wrench and muscle power!

How does barrel length affect accuracy and legality?

Barrel length is one of those specifications that impacts nearly everything about your rifle, from how it handles to its legal classification.

From a performance standpoint, longer barrels generally provide higher bullet velocity, which can improve accuracy at distance and increase terminal effectiveness. A 20″ barrel might give you an extra 200-300 fps compared to a 16″ barrel with the same ammunition. However, that extra length comes with added weight and reduced maneuverability.

The sweet spot for most shooters is the 16″ barrel, offering a good balance between ballistic performance and handling characteristics. It’s no coincidence this is also the minimum legal length for rifles without NFA restrictions.

Speaking of legal considerations, this is where things get serious. Putting a barrel shorter than 16″ on a rifle lower creates a Short-Barreled Rifle (SBR), requiring NFA registration and a $200 tax stamp. However, that same short barrel on a pistol lower (that was never configured as a rifle) is typically legal without NFA paperwork in most states.

Always check your state and local laws before building, as some jurisdictions have additional restrictions regardless of federal regulations. At Daytona Tactical, we’re happy to help guide you through these considerations before your purchase.

What’s the difference between a free-float and drop-in handguard?

The handguard you choose dramatically affects both the performance and appearance of your AR-15 upper assembly. Let me break down the key differences:

Free-float handguards attach only to the barrel nut/upper receiver and don’t touch the barrel at all. This allows the barrel to vibrate consistently when fired, typically improving accuracy. They’re the preferred choice for precision builds and have become standard on most modern rifles. They offer extensive mounting options for accessories via M-LOK or Picatinny rails and generally give your rifle a more contemporary look. The downside? They’re usually more expensive and require more complex installation.

Drop-in handguards fit between the front sight base/gas block and the handguard cap, making direct contact with the barrel. They’re simpler to install and remove (sometimes without any tools), and they’re usually less expensive. They give your rifle a more traditional, classic AR look, but typically offer fewer mounting options for accessories. The barrel contact can potentially affect accuracy, especially as the barrel heats up during extended firing sessions.

At Daytona Tactical, we primarily offer free-float handguard options because they provide superior performance advantages and versatility. That said, if you’re building a retro-inspired rifle or just prefer the classic look, drop-in handguards still have their place in the AR world.

Whichever style you choose, proper installation is key to getting the most from your build!

Conclusion & Next Steps

Congratulations! You’ve now got all the knowledge you need to tackle your own AR-15 upper assembly project. Building your upper isn’t just about saving money (though that’s certainly a nice bonus)—it’s about creating a personal connection with your firearm and truly understanding how every component works together.

Remember when you first thought about building an AR and how complicated it seemed? Look at you now—ready to assemble a precision upper receiver with your own two hands! There’s something deeply satisfying about squeezing that first trigger pull on a rifle you’ve built yourself. That moment when everything cycles perfectly? Pure magic.

The beauty of the AR platform is that your building journey doesn’t have to end here. This modular system invites ongoing exploration and customization. With your newly acquired skills, you might find yourself swapping barrels for different shooting applications or experimenting with various gas systems to fine-tune performance. Many builders start with one configuration and gradually upgrade components as their skills and budget grow.

Here at Daytona Tactical, we love seeing first-time builders develop into confident AR enthusiasts. We’re committed to supporting you every step of the way with quality components that won’t let you down. Our AR-15 pistol build kits are perfect for your next project, offering carefully selected components that work harmoniously together.

As you wrap up your build, take a moment to appreciate what you’ve accomplished. That upper receiver represents hours of learning, careful assembly, and attention to detail. Document your build specs for future reference—you’ll thank yourself later when you’re trying to remember which gas block you installed or what torque setting you used on the barrel nut.

Whether this is your first build or you’re adding to your collection, patience remains your most valuable tool. There’s no prize for finishing quickly, but there’s immense satisfaction in doing it right. And if you ever get stuck, our team is just a phone call away—we’ve seen it all and are happy to help fellow builders.

Ready to start turning that pile of parts into a precision-built upper? Grab your tools, clear your workspace, and enjoy the process. Your custom AR-15 upper assembly journey starts now!

Happy building!
